48V 3000W Frequency Sine Wave Inverter

ZIHO® has been deeply engaged in off-grid power system in China for more than ten years. ZIHO®'s 48V 3000W frequency sine wave inverter has lower air consumption and can be used for a long time with high power appliances. Widely used in: outdoor monitoring, industrial power and other fields. We have gained the trust and support from our customers. We are looking forward to being your long-term partner in China.

Model:FSY-Smart30204

Send Inquiry

Product Description

FSY-Smart30204 48V 3000W Sine Wave Inverter Multiple protection functions such as short circuit, overload, over/under voltage and overheating. High-current charging with mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. Can be used for: induction cooker freezers, air conditioners, electric water heaters, water pumps, 3000W resistive loads, 1100W motors and so on.

Machine Model	FSY-Smart30204
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	3000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-25A
loadability
Resistive loads	Below 3000W
Inductive loads	Below 1100W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	482219
Package size LWH cm	532727
Inverter weight KG	19

Product Features and Applications of 48V 3000W Industrial Frequency Sine Wave Inverter

48V 3000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 3000W resistive load, 1100W motor, etc.

Product Details for 48V 3000W Sine Wave Inverter

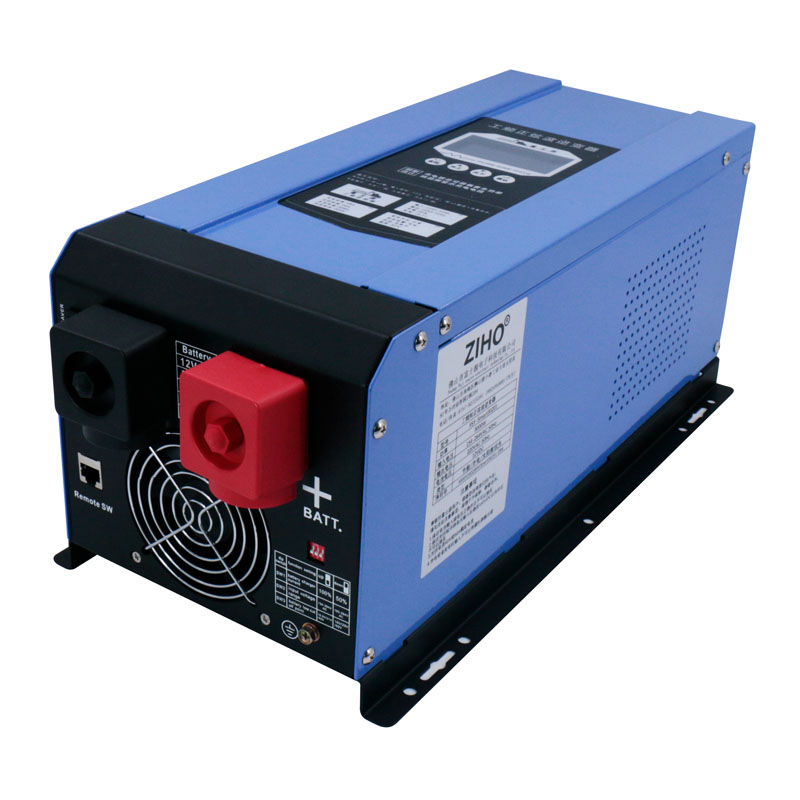

Front

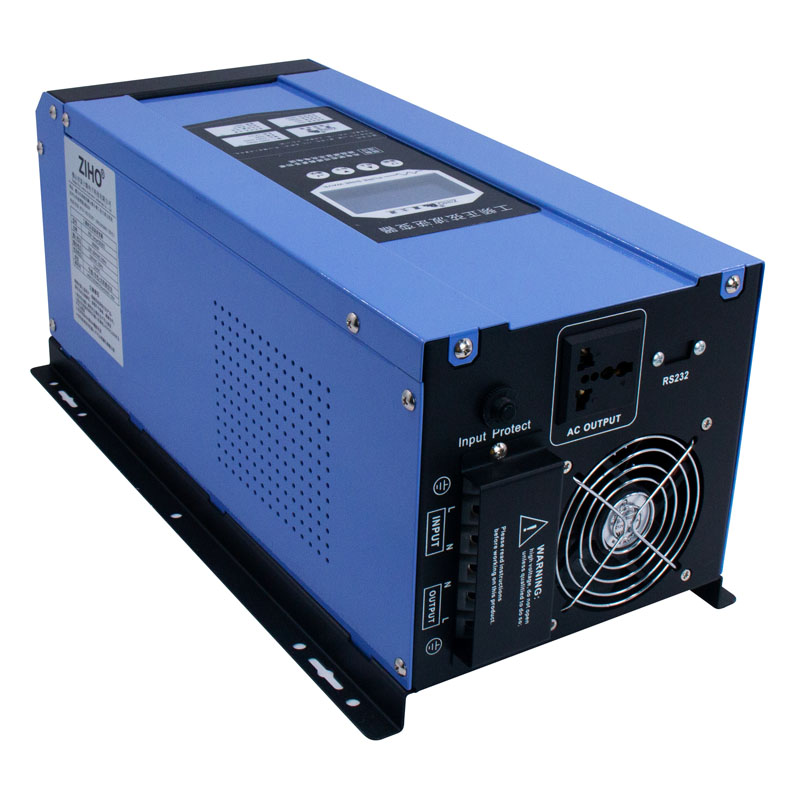

Backside

Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
