24V4KW-8KW Power Frequency Sine Wave Inverter
  • 24V4KW-8KW Power Frequency Sine Wave Inverter24V4KW-8KW Power Frequency Sine Wave Inverter
  • 24V4KW-8KW Power Frequency Sine Wave Inverter24V4KW-8KW Power Frequency Sine Wave Inverter
  • 24V4KW-8KW Power Frequency Sine Wave Inverter24V4KW-8KW Power Frequency Sine Wave Inverter
  • 24V4KW-8KW Power Frequency Sine Wave Inverter24V4KW-8KW Power Frequency Sine Wave Inverter
  • 24V4KW-8KW Power Frequency Sine Wave Inverter24V4KW-8KW Power Frequency Sine Wave Inverter

24V4KW-8KW Power Frequency Sine Wave Inverter

Foshan Fuyuan Electronic Technology Co., Ltd. is a manufacturer specializing in the research and development of 24V4KW-8KW Power Frequency Sine Wave Inverter for more than 10 years. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

24V4KW-8KW Power Frequency Sine Wave Inverter Specification

Machine Model(FSY-Smart)Reverse Control All-in-One 40202/04
05/06
50202/04
05/06
60202/04
05/06
70204/05/06 80204/05/06
INPUT
Battery Voltage 24V/48V
60V/72V
24V/48V
60V/72V
24V/48V
60V/72V
48V/60V/72V 48V/60V/72V
Mains Voltage 110V or 220V
Mains Power Range 154-264VAC/185-264VAC
Frequency 50/60Hz
OUTPUT
Power 4000W 5000W 6000W 7000W 8000W
Voltage 110V or220V±5%
Frequency 50/60Hz
Waveform Pure Sine Wave
Transmission Time (AC to DC) <8ms
Transmission Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V
Bypass Mode yes
Energy Saving Mode yes
Efficiency ≥85%
PROTECTION

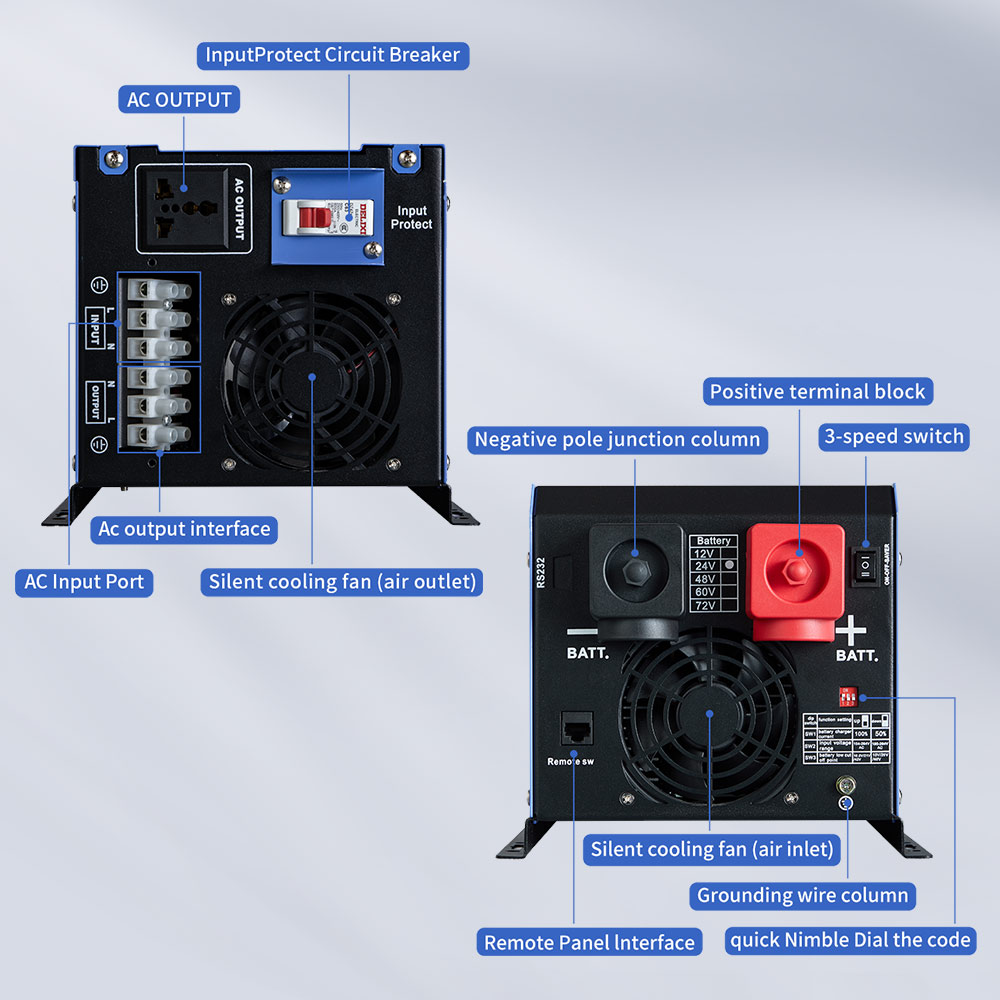

Input Protection Overcurrent Protection Circuit Breaker
Output Protection CPU Protection
BATTERIES (need to be purchased separately)
Battery Type Lead Acid/Colloid/Lithium Iron phosphate/Ternary Lithium battery (custom)
Charging Method Three-stage float charge/constant current and constant voltage
Mains Charging Voltage 24V-three stage float charging:conventional 28.4V、float charging 27.6V、constant current and constant voltage:14.5V:29V
48V-three stage float charging:conventional 56.8V、float charging 55.2V、constant current and constant voltage:58V
60V-three stage float charging:conventional 71V、float charging 69V、constant current and constant voltage:72.5V
72V-three stage float charging:conventional -85.2V、float charging 82.8V、constant current and constant voltage:87V
Mains Charging Current 0-60A(24V)
0-30A(48V)
0-15A(60V)
0-15A(72V)
0-60A(24V)
0-30A(48V)
0-18A(60V)
0-18A(72V)
0-80A(24V)
0-40A(48V)
0-23A(60V)
0-23A(72V)
0-50A(48V)
0-26A(60V)
0-26A(72V)
0-50A(48V)
0-30A(60V)
0-30A(72V)
Load Capacity
Resistive Load Below 4KW Below 5KW Below 6KW Below 7KW Below 8KW
included among these 24V 6000W Below 5000W
Inductive Load Below 1500W Below 2000W Below 2200W Below 2500W Below 3000W
Alarm
Low Battery Alarm Audible Alarm - 5 seconds beep
Overload Alarm Audible Alarm - Continuous beep
Fault Alarm Audible Alarm - Continuous beep
Environment
Temperature 0-40℃
Humidity 0-90% (non-condensing)
Noise <60dB
Size

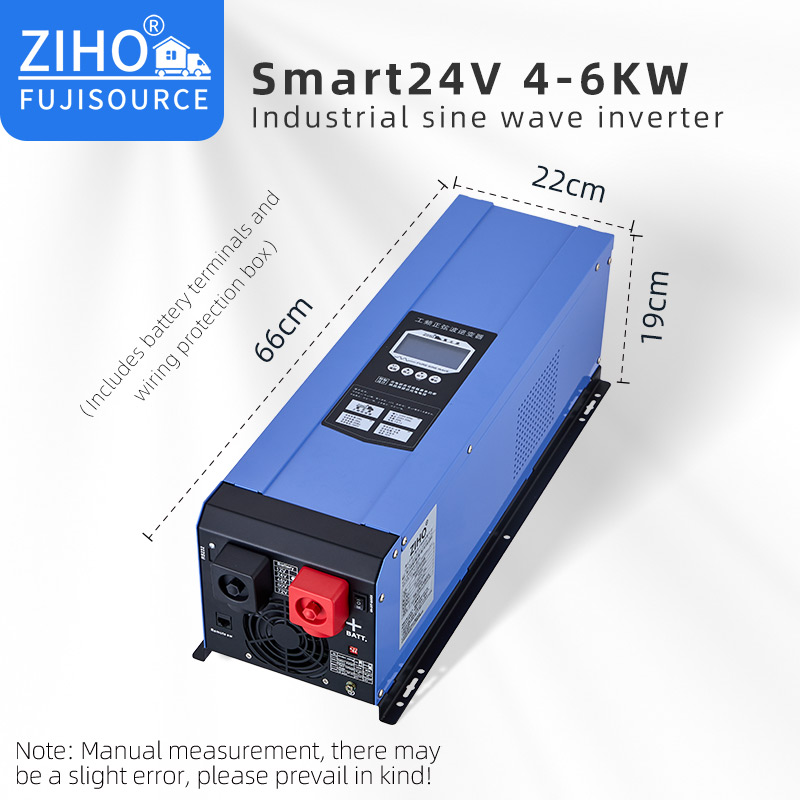

Dimensions(Length*width*height cm) inverter 66*22*19
Packaging(length*width*height cm) inverter 73*26*26
Inverter Weight KG 26 29 32 33 34
**The above parameters are for reference only. If there are any changes please refer to the actual product


Product highlights of 24V4KW-8KW Power Frequency Sine Wave Inverter

1. 7 working modes, in mains\solar\energy-saving mode, all equipped with unattended, generator, backlight and output mode adjustable when needed; new status display bar, self-check fault, restart function;

2. Protect against inductive lightning strike once when grounding is good;

3. Alarm sound can be turned on and off by yourself;

4. Real-time digital display of mains charging current;

5. Mains charging cut-off voltage is adjustable, and charging current has 11 gears that can be precisely adjusted;

6. Output 210V-240V adjustable;

7. 50Hz/60Hz adjustable;

8. Factory settings can be restored;

9. Support various types of batteries, you can choose by yourself;

10. Chinese and English can be switched by yourself;

11. Independent mains activation lithium battery module;

12. There are independent output-only and charging-only modules under mains load up to double rated power;

13. Reserved 485/collector interface;

14. There are quick dial codes.



Applications


DC to AC inverter, home use, car use, enterprise UPS and outdoor use
