48V 8000W Frequency Sine Wave Inverter

ZIHO® is a Chinese manufacturer that develops and manufactures off-grid industrial frequency pure sine wave inverters. It produces high power 48V 8000W frequency sine wave inverter, charging current up to 50A, strong power lower air consumption, small size, intelligent multiple mode selection. Our partners cover most of Southeast Asia. Widely used in photovoltaic energy storage power system, high-power vehicle power supply system, industrial power and other fields. Advanced good power supply to find the Fuji source ZIHO brand. We look forward to being your long-term partner in China.

Model:FSY-Smart80204

Send Inquiry

Product Description

FSY-Smart80204 48V 8000W Sine Wave Inverter Multiple protection functions such as short circuit, overload, over/under voltage and overheating. High-current charging with mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. Can be used for: advertising car, induction cooker, welding machine, car washer, water pump, ice cream machine, pure electric low-speed car, 8000W resistive load, 3000W motor and so on.

Machine Model	FSY-Smart80204
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	8000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-50A
loadability
Resistive loads	Below 8000W
Inductive loads	Below 3000W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	662219
Package size LWH cm	752727
Inverter weight KG	35

Product Features and Applications of 48V 8000W Industrial Frequency Sine Wave Inverter

48V 8000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 8000W resistive load, 3000W motor, etc.

Product Details for 48V 8000W Sine Wave Inverter

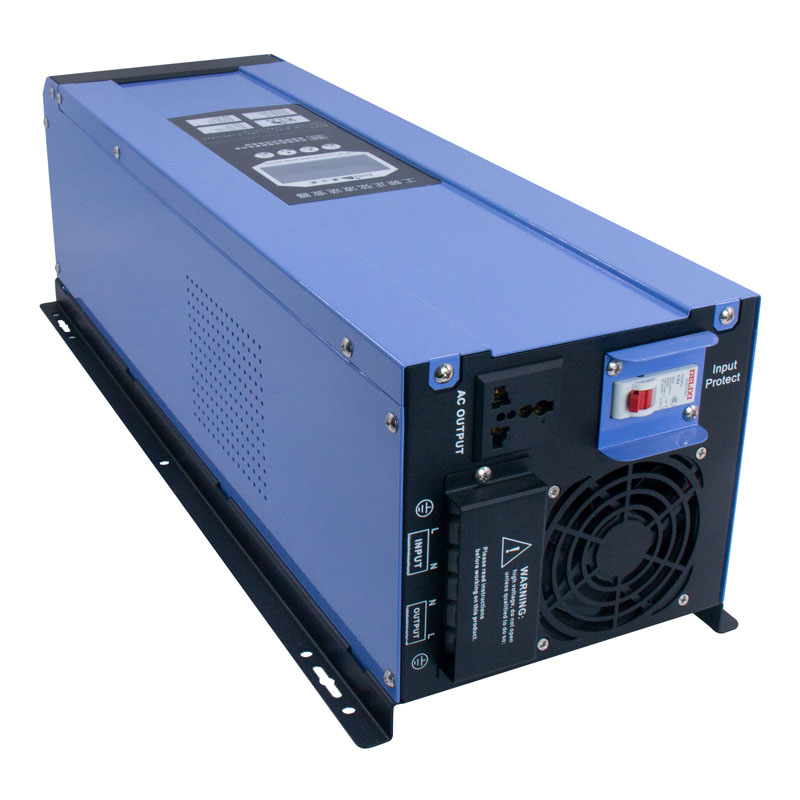

Front

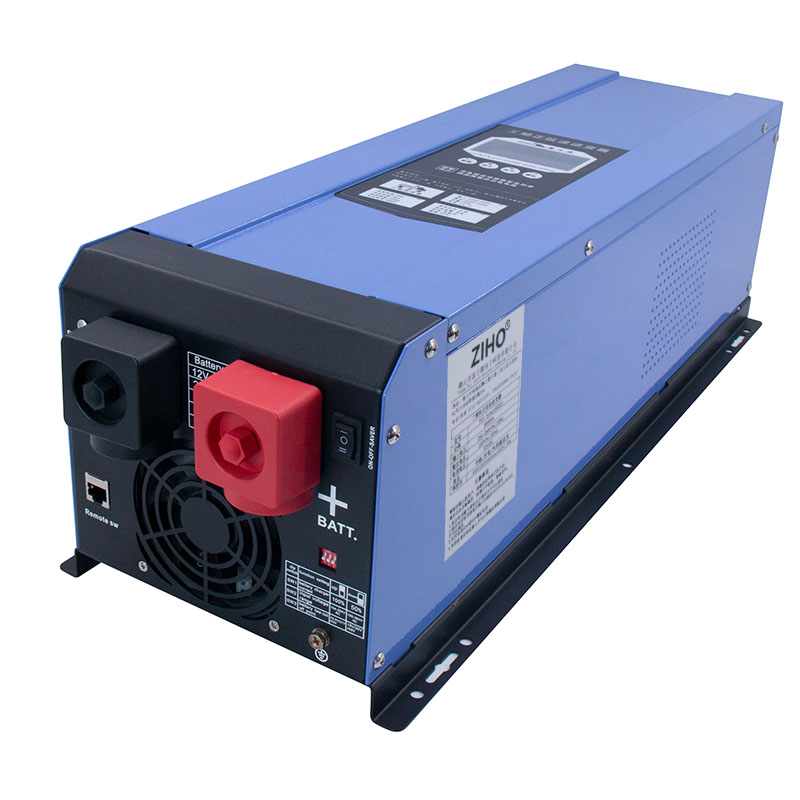

Backside

Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
