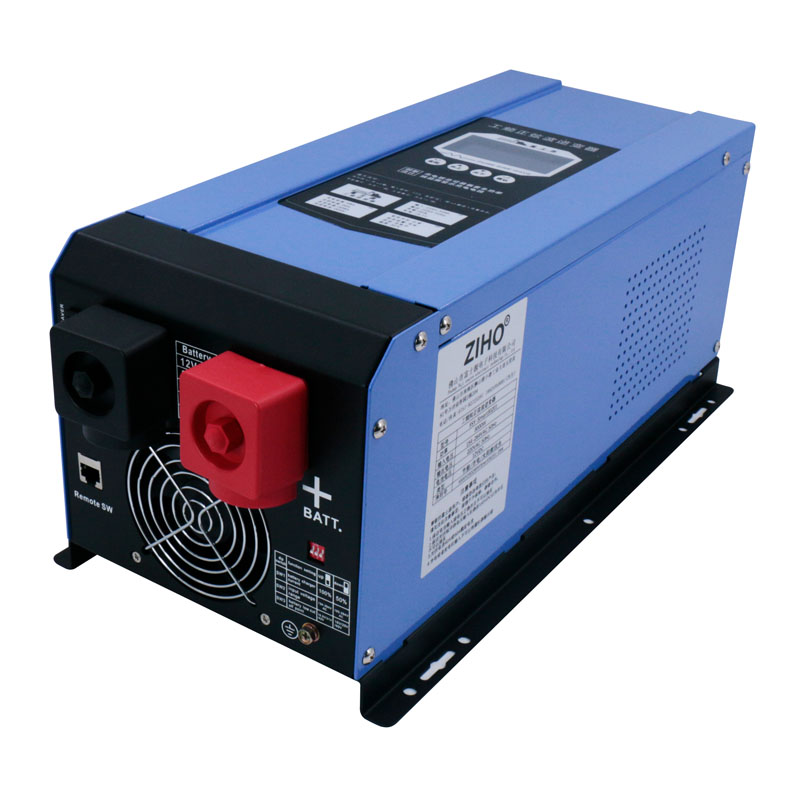

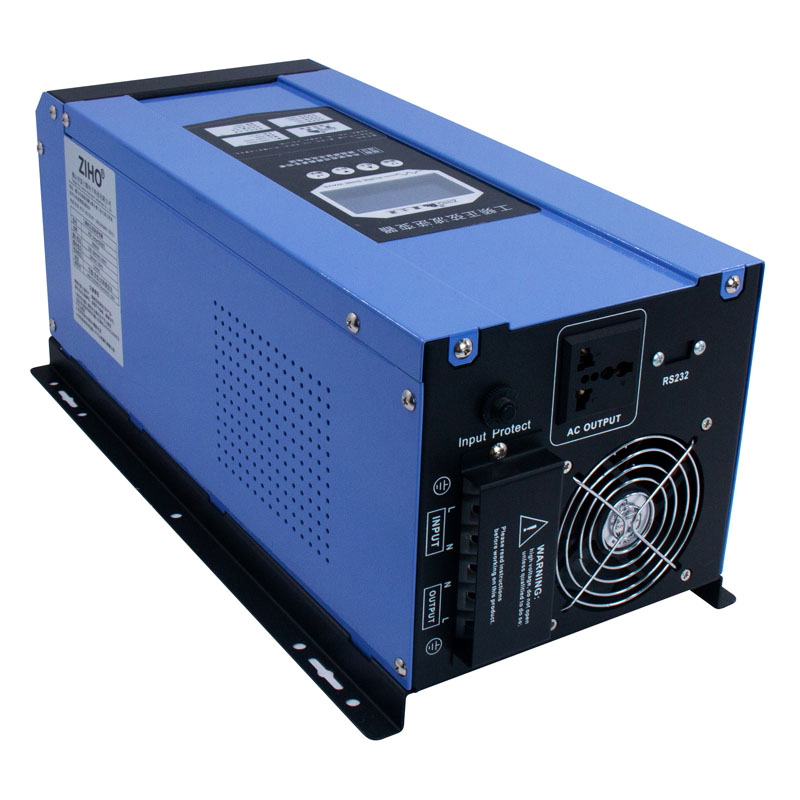

48V 1000W Frequency Sine Wave Inverter
  • 48V 1000W Frequency Sine Wave Inverter48V 1000W Frequency Sine Wave Inverter
  • 48V 1000W Frequency Sine Wave Inverter48V 1000W Frequency Sine Wave Inverter

48V 1000W Frequency Sine Wave Inverter

ZIHO® For more than 10 years, we have been specializing in the research, development and manufacture of off-grid me inverters. Produced 48V1000W inverter pure sine wave, power enough. Widely used in outdoor lighting, backup emergency power and other fields. Our 48V 1000W Frequency Sine Wave Inverters are sold in large quantities to most of the Southeast Asian markets. We are looking forward to being your long-term partner in China.


Send Inquiry

Product Description

Introducing the FSY-Smart10204 48V 1000W Sine Wave Inverter, engineered with a multitude of protective features including safeguards against short circuits, overload, over/under voltage, and overheating. Offering high-current charging capability when connected to mains power, it provides real-time display of charging current and boasts millisecond-level conversion speed. With UPS functionality, it ensures uninterrupted power supply during critical moments.

The output voltage of 210V-240V/105V-120V is adjustable, ensuring a stable power output. This versatile inverter is suitable for a variety of applications including rice cookers, computers, electric fans, 1000W resistive loads, 350W motors, and more. Trust the FSY-Smart10204 to deliver reliable power solutions for your diverse needs.

Machine Model FSY-Smart10204
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Watt 1000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Input Protection Over current Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current 0-7A
Resistive loads Below 1000W
Inductive loads Below 350W
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Product size L*W*H cm 48*22*19
Package size L*W*H cm 53*27*27
Inverter weight KG 12

Product Features and Applications of 48V 1000W Industrial Frequency Sine Wave Inverter

48V 1000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 1000W resistive load, 350W motor, etc.

Product Details for 48V 1000W Sine Wave Inverter



Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
