24V 2000W Frequency Sine Wave Inverter

A new energy manufacturer in China integrating R&D, production, sales and service of ZIHO® 24V 2000W Frequency Sine Wave Inverter. Widely used in hospitals, schools UPS power system, outdoor electricity, etc.. For more than 10 years, we have been specializing in the R&D and manufacturing of off-grid me inverters. Our products are sold in large quantities covering most of the Southeast Asian markets. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

FSY-Smart20202 24V 2000W Sine Wave Inverter Multiple protection functions such as short circuit, overload, overvoltage/undervoltage and overheating. High-current charging with mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. 24V 2000W Frequency Sine Wave Inverter Can be used for: microwave ovens, freezers, washing machines, water heaters, 2000W resistive loads, 750W motors and so on.

Machine Model	FSY-Smart20202
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	2000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Over current Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 28.4V, float charging 27.6V, constant current and constant voltage 29V
Charging Current	0-40A
loadability
Resistive loads	Below 2000W
Inductive loads	Below 750W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	482219
Package size LWH cm	532727
Inverter weight KG	17

Product Features and Applications of 24V 2000W Industrial Frequency Sine Wave Inverter

24V 2000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 2000W resistive load, 750W motor, etc.

Product Details for 24V 2000W Sine Wave Inverter

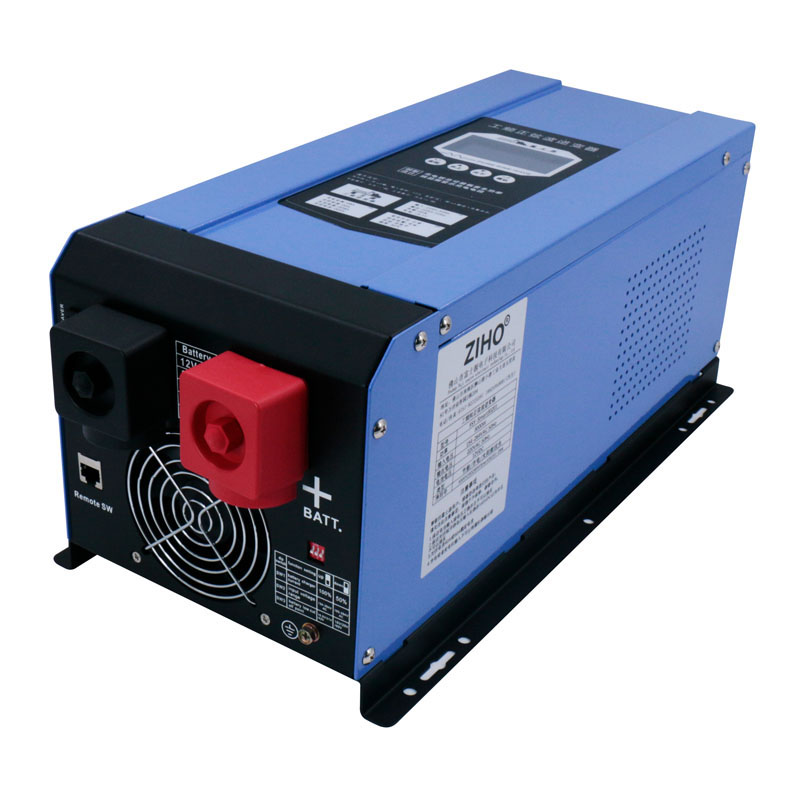

Front

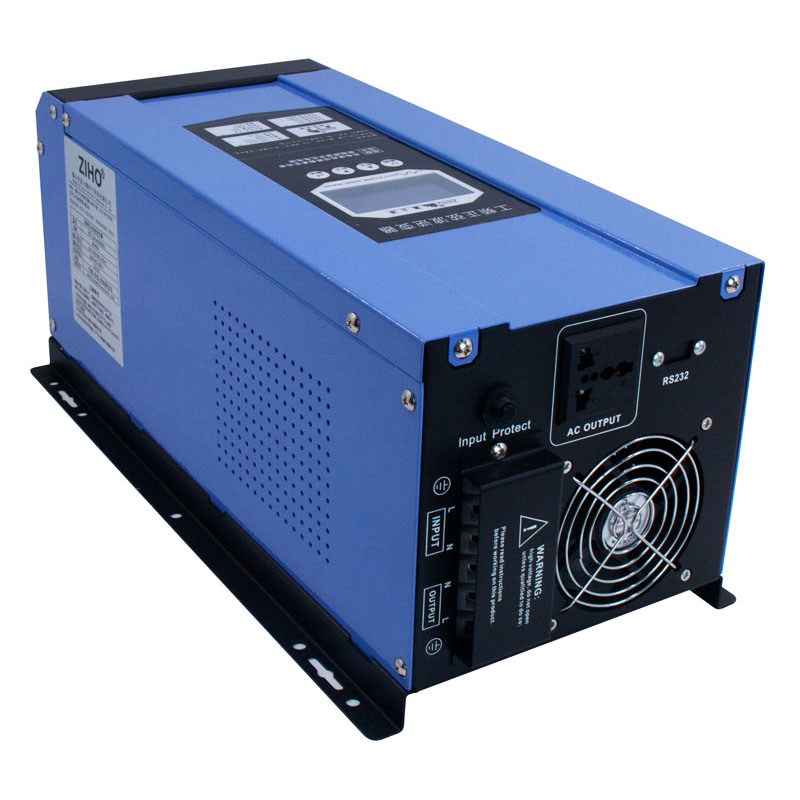

Backside

Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
