Home > Products > Off-grid Inverters > Smart Sine Wave Inverter > 12V 1000W Frequency Sine Wave Inverter
12V 1000W Frequency Sine Wave Inverter
  • 12V 1000W Frequency Sine Wave Inverter12V 1000W Frequency Sine Wave Inverter
  • 12V 1000W Frequency Sine Wave Inverter12V 1000W Frequency Sine Wave Inverter

12V 1000W Frequency Sine Wave Inverter

ZIHO is a R&D manufacturer in China specializing in off-grid power system for 10 years +, 12V 1000W Frequency Sine Wave Inverter, widely used for home backup power and outdoor power, we are looking forward to be your long-term partner in China. We are looking forward to being your long-term partner in China. Off-grid power supply is the brand of Fujiyuan ZIHO.

Send Inquiry

Product Description

FSY-Smart10201 12V 1000W Frequency Sine Wave Inverter Multiple protection functions such as short-circuit, overload, over voltage/under voltage and overheating. High current charging using mains power, real-time display of charging current, conversion speed in milliseconds, UPS function. Output 210V-240V/105V-120V adjustable, stable output voltage. 12V1000W IF sine wave inverter can be used with: electric kettle, rice cooker, refrigerator, computer, precision instruments, 1000W resistive load, 350W motor, etc.


Machine Model FSY-Smart10201
Input
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Ootput
Watt 1000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Protect
Input Protection Over current Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 14.2V, float charging 13.8V, constant current and constant voltage 14.5V
Charging Current 0-30A
loadability
Resistive loads Below 1000W
Inductive loads Below 350W
Alarm
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Setting
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Sizes
Product size L*W*H cm 48*22*19
Package size L*W*H cm 53*27*27
Inverter weight KG 12


Product Features and Applications of 12V 1000W Industrial Frequency Sine Wave Inverter

12V 1000W Frequency Sine Wave Inverter, With various protection functions such as short circuit, overload, over/under voltage, over temperature, etc. High-current charging using utility power, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function.Can take: kettle, rice cooker, refrigerator, computer, precision instruments, 1000W resistive load, 350W motor, etc.


Product Details for 12V 1000W Sine Wave Inverter

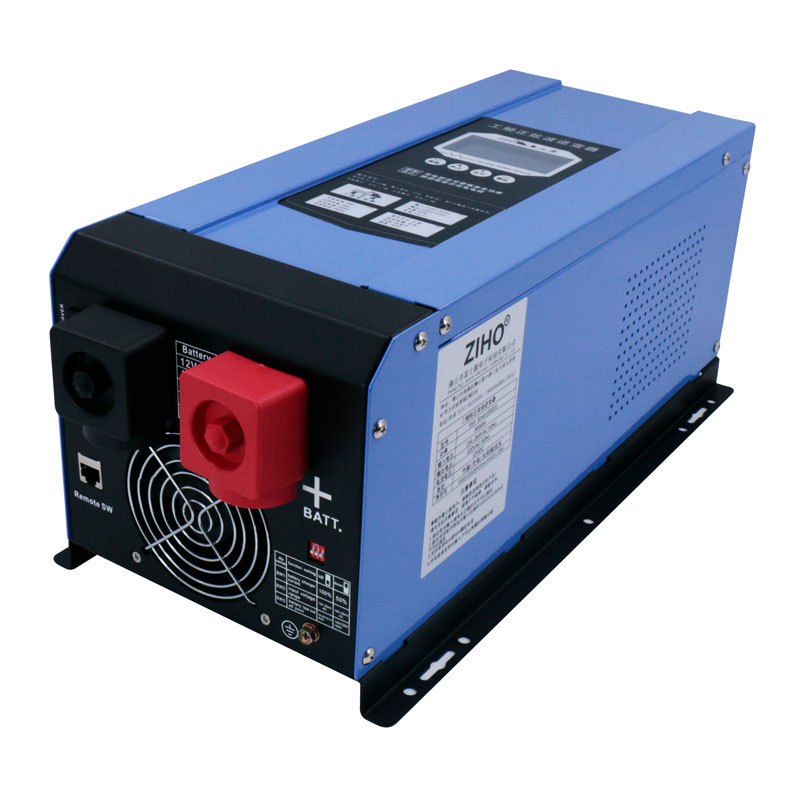

Front

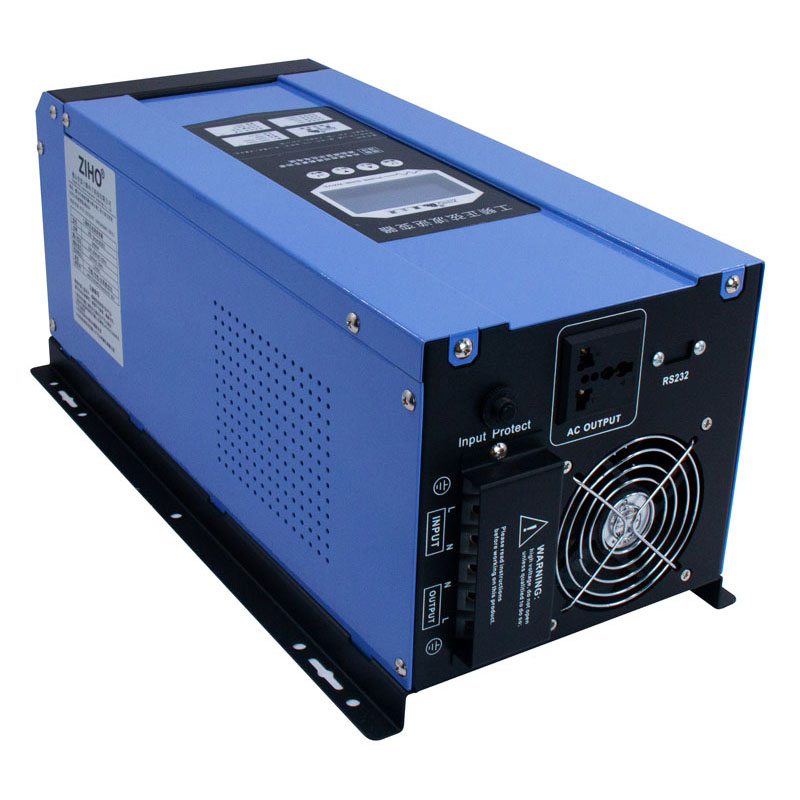

Backside


Product Detail Show

Easy to understand and operate at a glance

Can turn the page to see the condition of the machine.The inverter can be set by the user.Press "Return" and "Confirm" at the same time to access settings such as setting battery type, charging current, operating mode, input/output, alarm switch, mains charging cut-off voltage, backlight switch, and Chinese/English switching.
