48V 6000W-70A MPPT Solar Inverter

ZIHO® is a distinguished solar inverter manufacturer based in China, specializing in the production of 48V 6000W-70A MPPT solar inverters equipped with built-in MPPT 70A solar controllers. These inverters seamlessly support utility 40A current charging and are optimized for solar panel connections up to 3640 watts within the 67V-150V voltage range. For advanced, high-quality power products, turn to the Fuji Source ZIHO brand. We are dedicated to providing exceptional solutions and eagerly anticipate the opportunity to establish enduring partnerships in China and beyond.

Model:FSY-Smart60204-70A

Send Inquiry

Product Description

48V 6000W-70A MPPT solar inverter with multiple protection functions. Anti lightning strike function. Support up to 3640 watts of solar panels, access voltage is recommended to be controlled between 67V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker, electric drill, cutting machine, etc.

Machine Model	FSY-Smart60204-70A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	6000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-40A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	70A
loadability
Resistive loads	Below 6000W
Inductive loads	Below 2200W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	34

48V 6000W-70A MPPT Solar Inverter Product Characteristics and Applications

48V 6000W-70A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 6000W resistance load, 2200W motor, etc.

Product Details for 48V 6000W-70A MPPT Solar Inverter

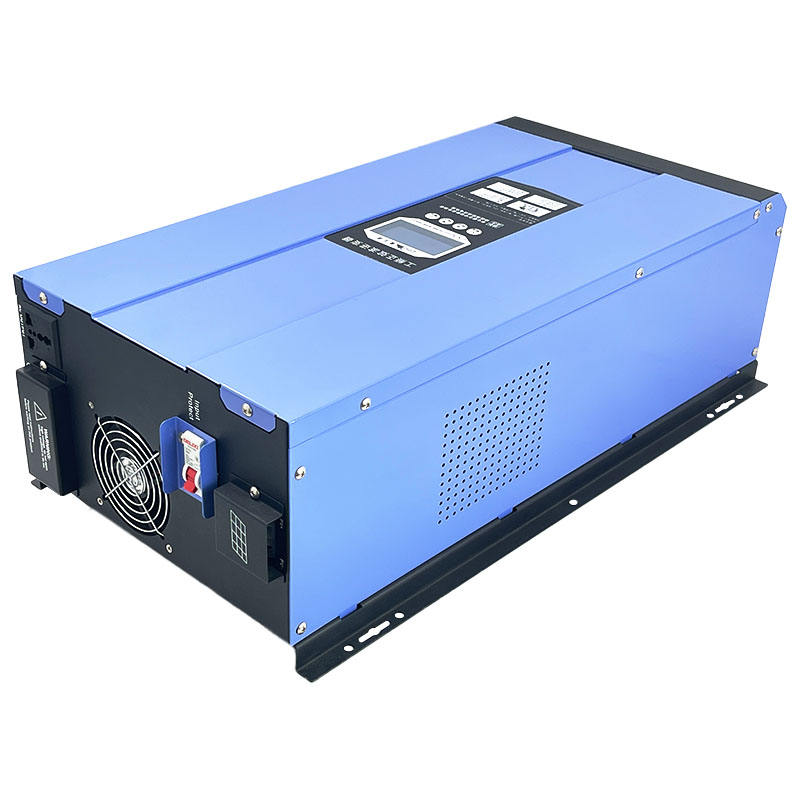

Front

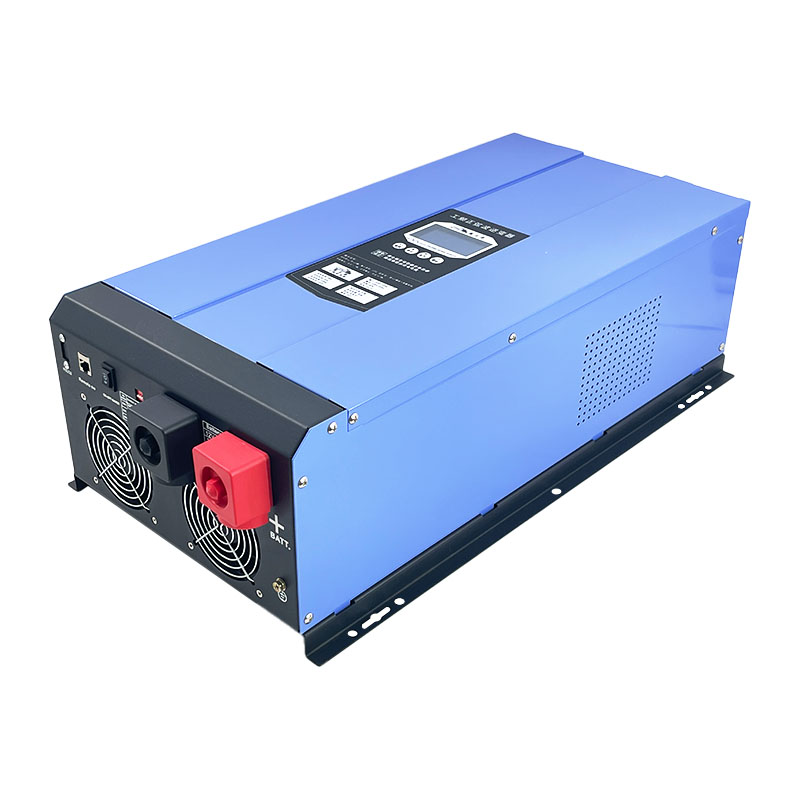

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
