48V 5000W-140A MPPT Solar Inverter

Fujiyuan ZIHO® is a leading solar inverter manufacturer based in China, specializing in the production of high-quality 48V 5000W-140A MPPT Solar Inverters. Our inverters come with a built-in 140A MPPT solar controller, enabling seamless integration and efficient energy conversion. They support up to 40A current charging from utility power and are optimized for solar panel setups ranging up to 7280 watts within the 67V-150V voltage range.

Model:FSY-Smart50204-140A

Send Inquiry

Product Description

48V 5000W-140A MPPT solar inverter has various protection functions such as short circuit, overload, over/under voltage, overheat and so on. Support up to 7640 watts of solar panels with lightning protection. Access voltage is recommended to be controlled between 67V-150V, with real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker, power tools and so on.

Our inverters boast an adjustable input range, providing flexibility and adaptability to various installation requirements. They feature output-only functionality and offer multiple language options for user convenience. With extensive partnerships across Southeast Asia, our products are widely adopted in home solar energy storage systems, marine and RV power setups, industrial applications, and more.

For cutting-edge, reliable power solutions, look no further than the Fuji Source ZIHO brand. We are committed to delivering advanced and top-quality products, and we eagerly anticipate the opportunity to establish long-term partnerships with you in China and beyond.

Machine Model	FSY-Smart50204-140A
Input
Utility Volts	220V	110V
Utility Range	170-260VAC	85-130VAC
Frequency	50/60HZ
Ootput
Watt	5000W
Volts	220V±5%	110v±5%
Frequency	50/60HZ
Waveform	Pure Sine Wave
Conversion Time (AC to DC)	<8ms
Conversion Time (DC to AC)	<8ms
Output Voltage Regulation	210V-240V	105V-120V
Bypass Mode	Have
Energy Saving Mode	Have
Efficiency	≥85%
Protect
Input Protection	Overcurrent Protector
Output Protection	CPU Protect
Battery (sold separately)
Battery Type	Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method	Three stage float charging/constant current and pressure
Utility Charge Voltage	Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current	0-40A
Photovoltaic	Specification of inverter control all-in-one machine only
Controllers	MPPT
Volts	48V
Current	140A
loadability
Resistive loads	Below 5000W
Inductive loads	Below 2000W
Alarm
Low Pressure Alarm	Audible Alarm - 5 Seconds Beep
Overload Alarm	Audible Alarm - Continuous Beep
Fault Alarm	Audible Alarm - Continuous Beep
Setting
Temp	0-40℃
Moisture	0-90% Non-Condensing
Noise	<60dB
Sizes
Product size LWH cm	643729
Package size LWH cm	763931
Inverter weight KG	30

48V 5000W-140A MPPT Solar Inverter Product Characteristics and Applications

48V 5000W-1400A MPPT Solar Inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 5000W resistance load, 2000W motor, etc.

Product Details for 48V 5000W-140A MPPT Solar Inverter

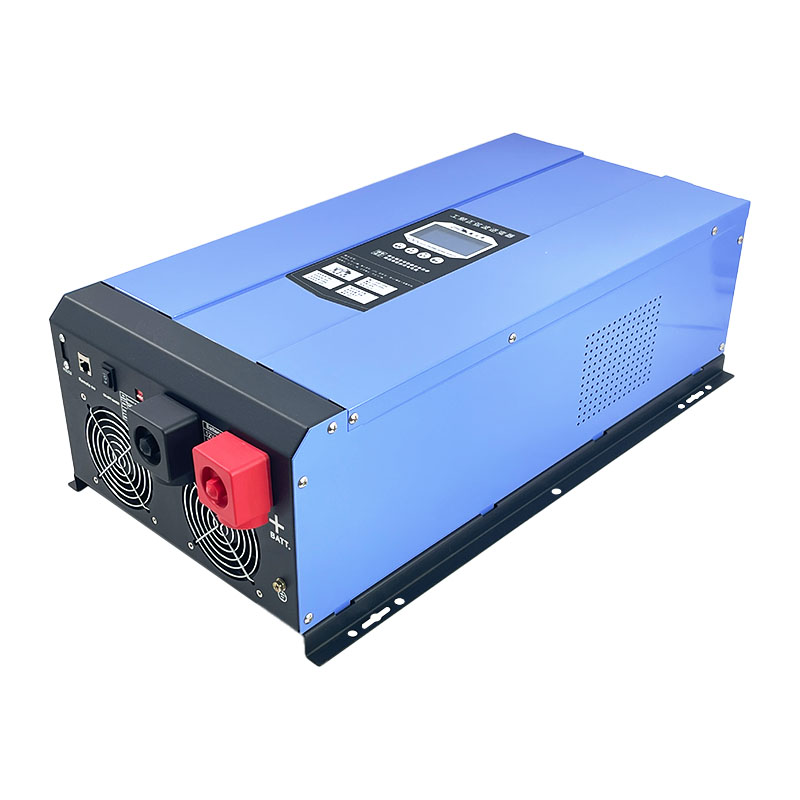

Front

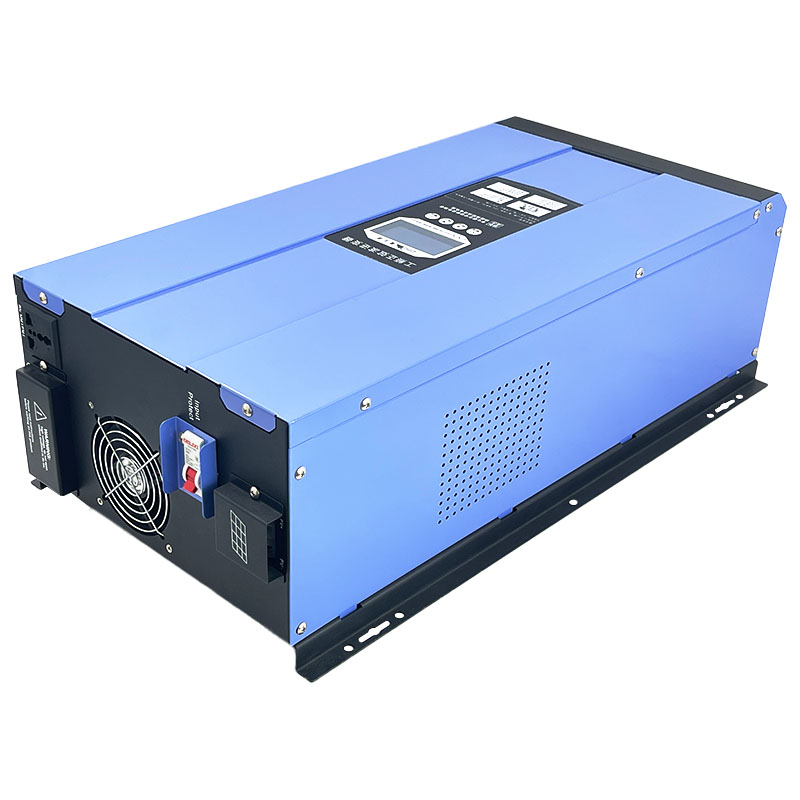

Backside

Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
