48V 4000W-140A MPPT Solar Inverter
  • 48V 4000W-140A MPPT Solar Inverter48V 4000W-140A MPPT Solar Inverter
  • 48V 4000W-140A MPPT Solar Inverter48V 4000W-140A MPPT Solar Inverter

48V 4000W-140A MPPT Solar Inverter

ZIHO® is a Chinese manufacturer of 48V 4000W-140A MPPT solar inverters. With a built-in 140A-MPPT solar controller and a recommended access voltage range of 67V-150 V, it can be used with solar panels up to 7280 watts. The conversion speed is rotary and supports generator charging and utility charging modes. Our partners cover most of Southeast Asia. It is widely used in home solar energy storage power system, marine solar power system, RV power system and so on. For advanced, high-quality power supplies, please focus on the Fujiyuan ZIHO brand. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

48V 4000W-140A MPPT solar inverter has multiple protection functions such as short circuit, overload, overvoltage/undervoltage, overheat and so on. Support up to 7280 watts of solar panels, access voltage is recommended to be controlled between 39V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: electric kettle, oven, microwave oven, refrigerator, air conditioner, induction cooker and so on.


Machine Model FSY-Smart40204-140A
Input
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Ootput
Watt 4000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Protect
Input Protection Overcurrent Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current 0-30A
Photovoltaic Specification of inverter control all-in-one machine only
Controllers MPPT
Volts 48V
Current 140A
loadability
Resistive loads Below 4000W
Inductive loads Below 1500W
Alarm
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Setting
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Sizes
Product size L*W*H cm 64*37*29
Package size L*W*H cm 76*39*31
Inverter weight KG 29


48V 4000W-140A MPPT Solar Inverter Product Characteristics and Applications

48V 4000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 4000W resistance load, 1500W motor, etc.


Product Details for 48V 4000W-140A MPPT Solar Inverter

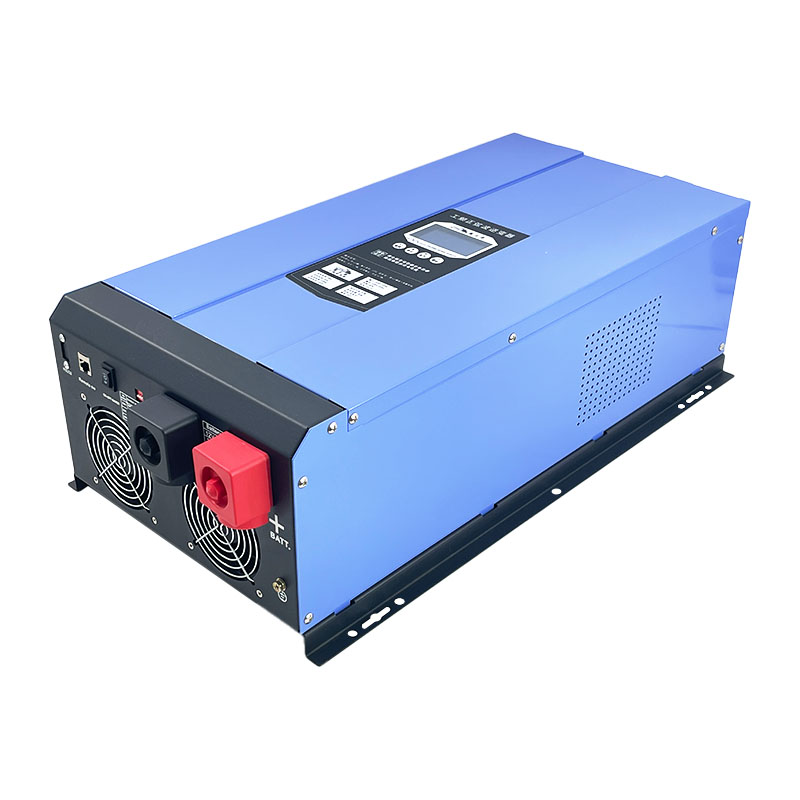

Front

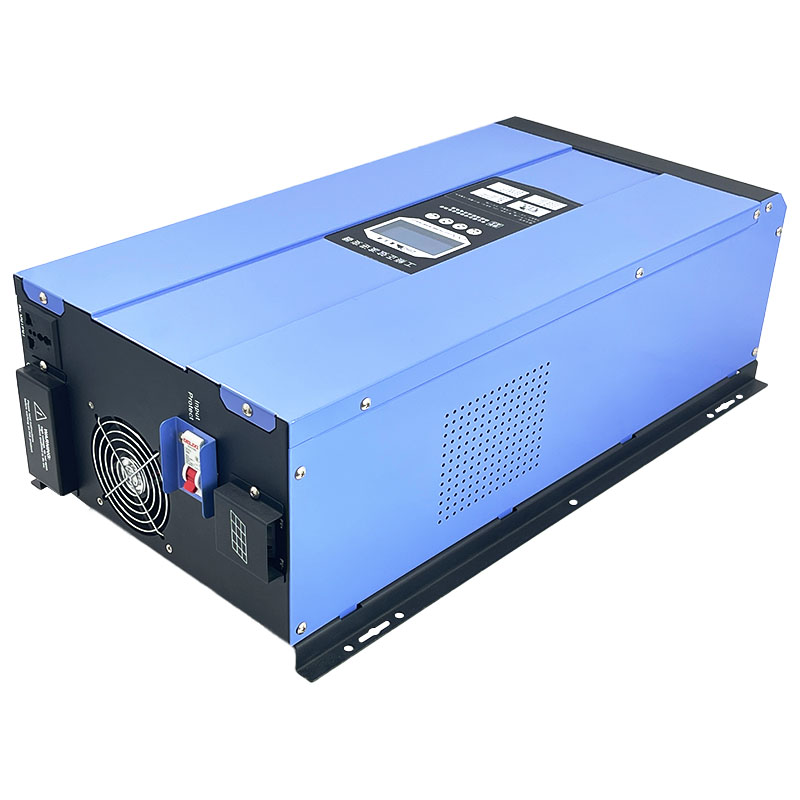

Backside


Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
