48V 3KW High Frequency All In One Inverter Charger

Foshan Fuyuan Electronic Technology Co., Ltd. is a Chinese manufacturer specializing in the research and development of off-grid power systems for more than 10 years. Its brand ZIHO®: 48V3KW high-frequency inverter-charger all-in-one, which can convert DC power to pure sine wave AC power, with the function of utility power automatically charging the battery and utility inverter automatically switching output. Support output only and charging only function. With many kinds of protection functions. Support 485, CAN bus communication.48V3KW low frequency inverter charger is suitable for vehicle power system, outdoor mobile power, solar energy storage, emergency power for office/medical organizations, etc. We are looking forward to being your long-term partner in China.

Send Inquiry

Product Description

Features of 48V3KW High Frequency Inverter Charger: double rated power in mains mode, support output only and charging only function, high charging current (30A), adjustable output voltage 210V-240V, support all kinds of batteries, compact and lightweight, easy to carry. Suitable for most electrical appliances, such as: computers, lighting, rice cookers, hairdryers, induction cookers, cutting machines, water pumps, etc.

Product Model	FSY-HIFI-30204
watt	3KW
Output Waveforms	Pure Sine Wave
Battery Type	Lead Acid/Lithium Iron/Ternary/Custom
overpressure protection	64V-66V
low voltage protection	22V-40V
Battery Voltage	48V
Output Voltage	210-240V settable
Output frequencie	50Hz or 60Hz
Utility power input range	185-264V
Utility charging current	0-30A settable
UPS Cutover time	10-15ms
Max. efficiency	>93%
Safeguard	Low voltage, over voltage, overload, short circuit, over temperature
Temp	-20℃ TO 50℃
Humidity	0-90% Noncondensable
Net Weight	Approximate 8Kg
Product Size	43×34×11cm
Wrap	Cardboard box

Product Features and Applications of 48V3KW High Frequency All In One Inverter Charger

ZIHO® 48V3000W high-frequency inverter charger, with short-circuit, overload, over-voltage/under-voltage, over-temperature and other protection functions. Compatible with 50/60Hz frequency, using the utility 30A high current charging, load power real-time display. Can be used with: hair dryer, washing machine, electric kettle, rice cooker, refrigerator, computer, precision instruments, 3000W resistive loads, 1100W motor and so on.

Product Details for 48V3KW High Frequency All In One Inverter Charger

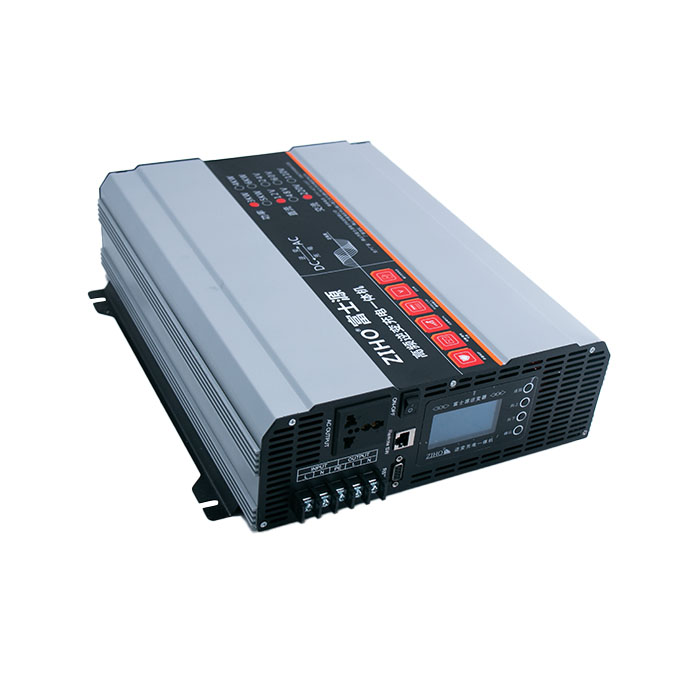

Front

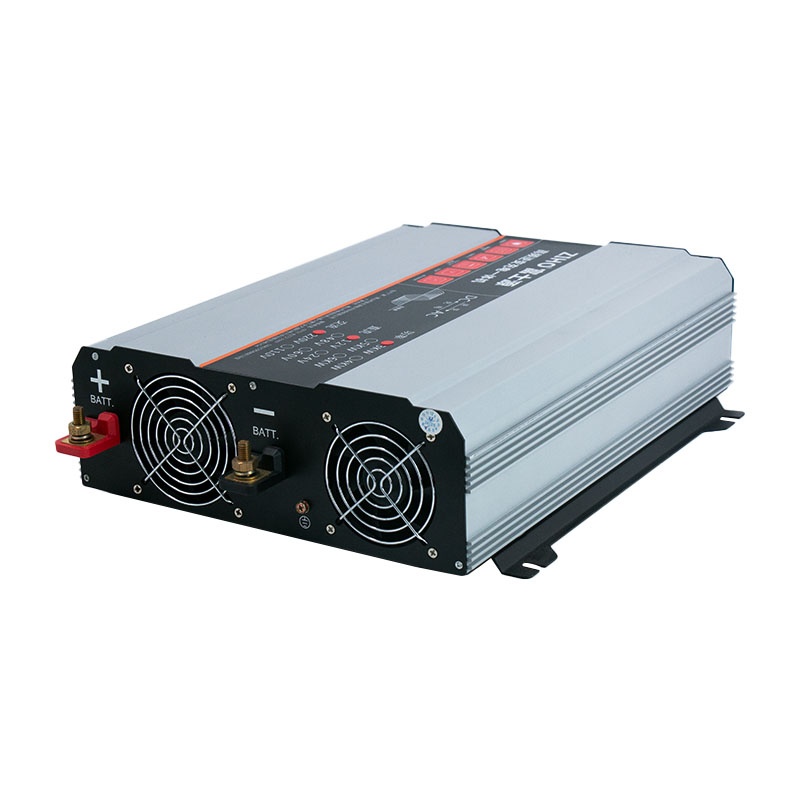

Backside

Product Detail Show

Easy to understand and operate at a glance

Appearance Size

Packing List

No.	Accessory Name	Model Number	Amount	Unit	Note
1	Power Cable	50cm	2	Root
2	Remote Control Panel		1	Set
3	Instruction Manual		1	Base	Including warranty card, certificate of conformity
