Home > Products > Off-grid Inverters > High Frequency All In One Inverter Charger > 12V 3KW High Frequency All In One Inverter Charger
12V 3KW High Frequency All In One Inverter Charger
ZIHO is a Chinese R&D manufacturer specializing in off-grid power supply system for more than 10 years. 12V 3KW High Frequency All In One Inverter Charger can convert DC power into pure sine wave AC power, and comes with the function of automatic charging of utility power to the battery and automatic switching of utility power inverter output. The data of the whole machine adopts LCD liquid crystal display, which is suitable for vehicle power system, outdoor mobile power supply, photovoltaic energy storage, office room and so on. We are looking forward to being your long-term partner in China
Send Inquiry
Product Description
12V 3KW High Frequency All In One Inverter Charger Features: Double rated power in mains mode, support output only and charging only function, adjustable output 210V-240V, support all kinds of batteries, compact and lightweight, easy to carry.
| Product Model | FSY-HIFI-30201 |
| watt | 3KW |
| Output Waveforms | Pure Sine Wave |
| Battery Type | Lead Acid/Lithium Iron/Ternary/Custom |
| overpressure protection | 16V-16.5V |
| low voltage protection | 10.5V-10V |
| Battery Voltage | 12V |
| Output Voltage | 210-240V settable |
| Output frequencie | 50Hz or 60Hz |
| Utility power input range | 185-264V |
| Utility charging current | 0-100A settable |
| UPS Cutover time | 10-15ms |
| Max. efficiency | >93% |
| Safeguard | Low voltage, over voltage, overload, short circuit, over temperature |
| Temp | -20℃ TO 50℃ |
| Humidity | 0-90% Noncondensable |
| Net Weight | Approximate 8Kg |
| Product Size | 43×34×11cm |
| Wrap | Cardboard box |
Product Features and Applications of 12V3KW High Frequency All In One Inverter Charger
12V3000W high-frequency inverter charging all-in-one machine, with short circuit, overload, overvoltage/undervoltage, over-temperature and other protection functions. Compatible with 50/60Hz frequency, using the utility 100A high current charging, load power real-time display. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 2500W resistive load, 750W motor and so on.
Product Details for 12V3KW High Frequency All In One Inverter Charger

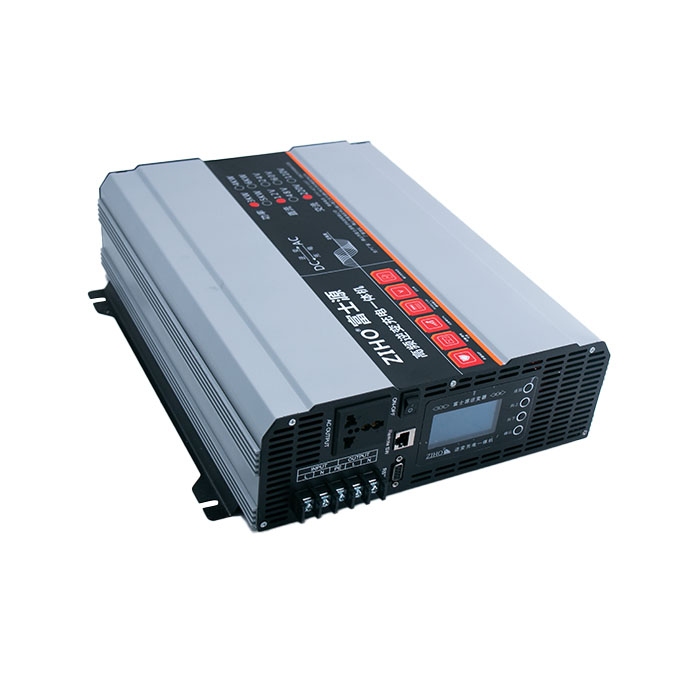

Front

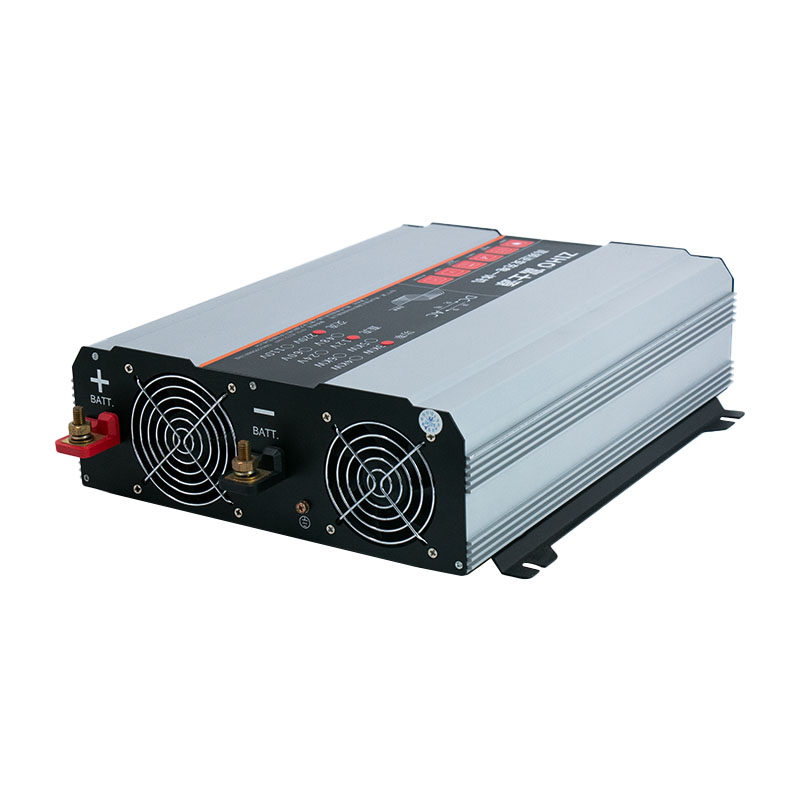

Backside
Product Detail Show
Easy to understand and operate at a glance
Appearance Size
Packing List
| No. | Accessory Name | Model Number | Amount | Unit | Note |
| 1 | Power Cable | 50cm | 2 | Root | |
| 2 | Remote Control Panel | 1 | Set | ||
| 3 | Instruction Manual | 1 | Base | Including warranty card, certificate of conformity |
