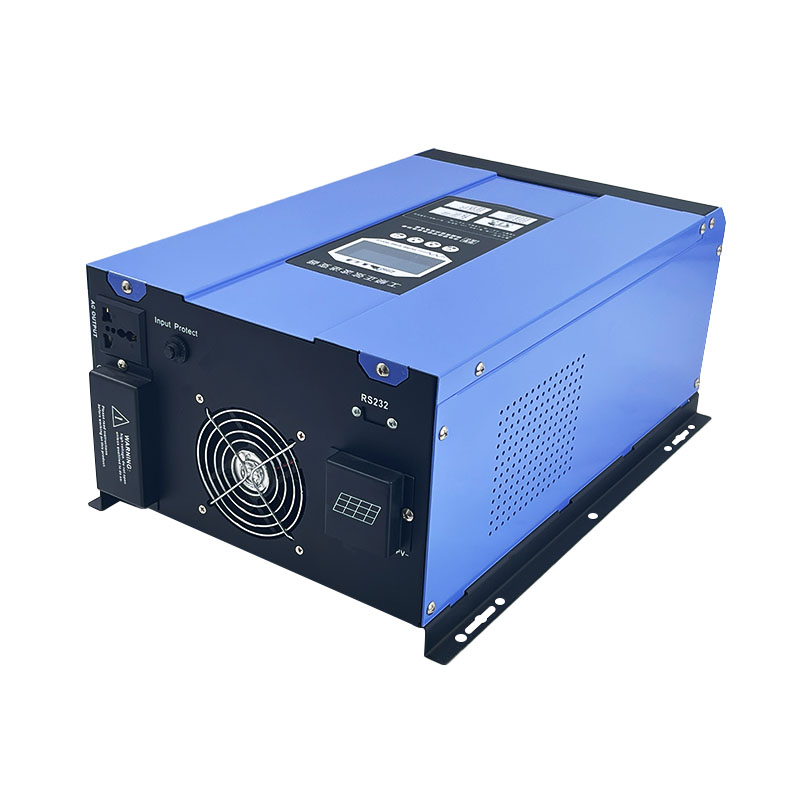

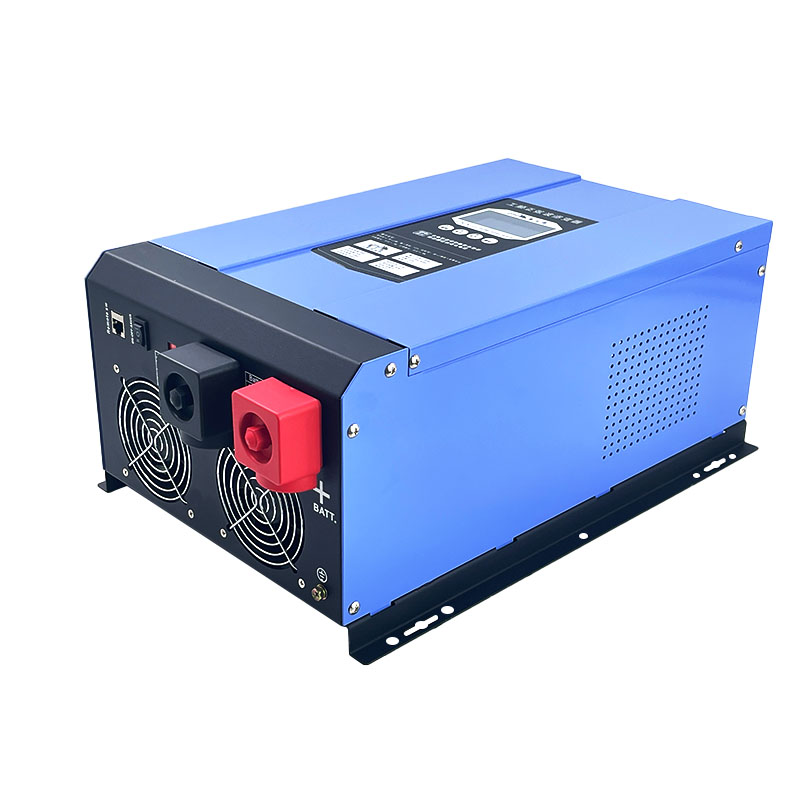

48V 1000W-140A MPPT Solar Inverter
  • 48V 1000W-140A MPPT Solar Inverter48V 1000W-140A MPPT Solar Inverter
  • 48V 1000W-140A MPPT Solar Inverter48V 1000W-140A MPPT Solar Inverter

48V 1000W-140A MPPT Solar Inverter

ZIHO® is a Chinese manufacturer that develops and produces solar inverters.ZIHO® produces 48V 1000W-140A solar inverters that support utility charging and solar power generation. The 48V 1000W-140A MPPT Solar Inverter has a built-in 140A-MPPT solar controller and 11 adjustable charge levels. Our partners cover most of Southeast Asia. It is widely used in home lighting power generation system and so on.


Send Inquiry

Product Description

The 48V 1000W-140A MPPT solar inverter has multiple protections such as short circuit, overload, and has an output only function as well as 11 adjustable charging steps. Supports solar panels up to 140A with real-time charging current display and millisecond conversion speed. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: home lighting, computers and other electrical appliances.

Machine Model FSY-Smart10204-140A
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Watt 1000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Input Protection Overcurrent Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current 0-7A
Photovoltaic Specification of inverter control all-in-one machine only
Controllers MPPT
Volts 48V
Current 140A
Resistive loads Below 1000W
Inductive loads Below 350W
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Product size L*W*H cm 56*37*29
Package size L*W*H cm 58*39*31
Inverter weight KG 14

48V 1000W-140A MPPT Solar Inverter Product Characteristics and Applications

48V 1000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 1000W resistance load, 350W motor, etc.

Product Details for 48V 1000W-140A MPPT Solar Inverter



Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
