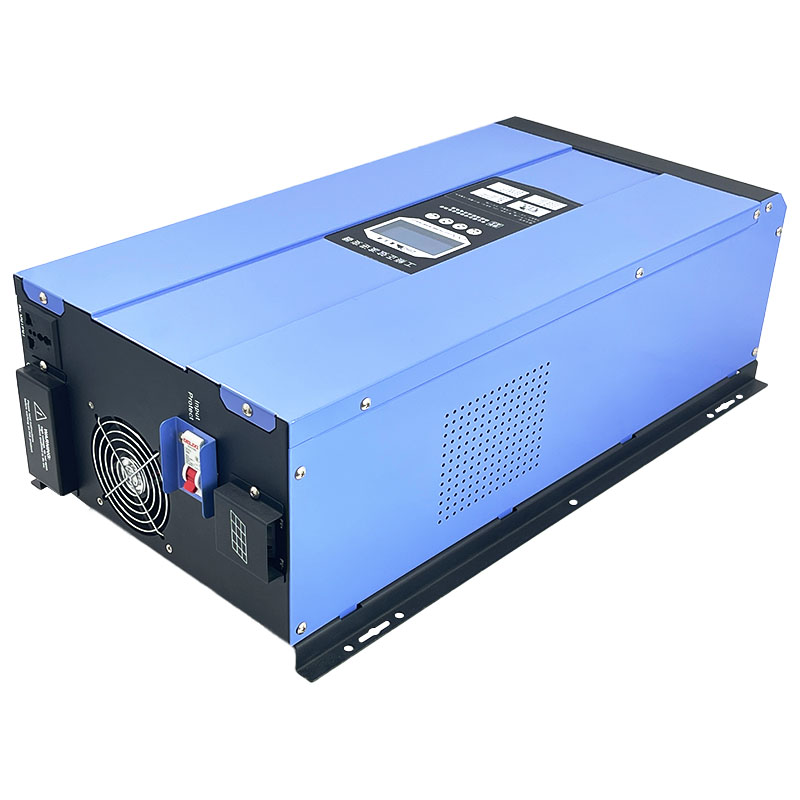

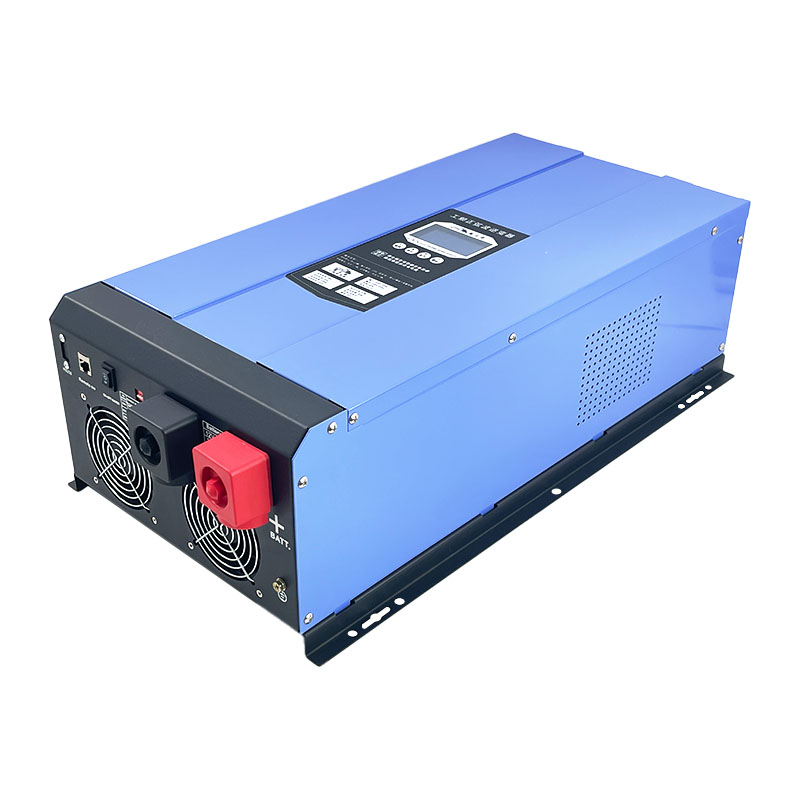

24V 6000W-140A MPPT Solar Inverter
  • 24V 6000W-140A MPPT Solar Inverter24V 6000W-140A MPPT Solar Inverter
  • 24V 6000W-140A MPPT Solar Inverter24V 6000W-140A MPPT Solar Inverter

24V 6000W-140A MPPT Solar Inverter

ZIHO®, a leading solar inverter manufacturer in China, presents the 24V 6000W-140A MPPT Solar Inverter. Featuring a built-in 140A-MPPT solar controller and 11 adjustable charging levels, this inverter offers versatility and efficiency. Capable of supporting up to 3640 watts of solar panels within the recommended input voltage range of 39V-150V, it also accommodates high-current charging from the grid, reaching up to 80A. Our extensive network of partners spans across Southeast Asia, reflecting our commitment to delivering superior products and services.


Send Inquiry

Product Description

24V 6000W-140A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheating and so on. With lightning protection function, multiple charging gears are adjustable, applicable to various battery types on the market. Adjustable output voltage, it is recommended to control the PV access voltage between 39V-150V, real-time display of charging current, stable output voltage. Suitable for: microwave ovens, electric water heaters, refrigerators, air conditioners, induction cookers, water pumps and so on.

Machine Model FSY-Smart60202-140A
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Watt 6000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Input Protection Overcurrent Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 28.4V, float charging 27.2V, constant current and constant voltage 29V
Charging Current 0-80A
Photovoltaic Specification of inverter control all-in-one machine only
Controllers MPPT
Volts 24V
Current 140A
Resistive loads Below 5000W
Inductive loads Below 2200W
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Product size L*W*H cm 64*37*29
Package size L*W*H cm 76*39*31
Inverter weight KG 36

24V 6000W-140A MPPT Solar Inverter Product Characteristics and Applications

24V 6000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can for: electric kettle, water heater, refrigerator, air conditioner, induction cooker and so on., 5000W resistance load, 2200W motor, etc.

Product Details for 24V 6000W-140A MPPT Solar Inverter



Product Detail Show

Easy to understand and operate at a glance

Users can set the solar inverter, press "Return" and "Confirm" at the same time to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching and so on.
