24V 5000W Industrial Frequency Inverter
  • 24V 5000W Industrial Frequency Inverter24V 5000W Industrial Frequency Inverter
  • 24V 5000W Industrial Frequency Inverter24V 5000W Industrial Frequency Inverter

24V 5000W Industrial Frequency Inverter

ZIHO FSY-PDD50202/24V 5000W Industrial Frequency Inverter can be used continuously for a long time, compatible with most electrical equipment. Supports utility power charging with 11 adjustable gears. Can use utility power to charge the battery, and real-time display of charging current. Supports multiple battery types and can be switched to multiple languages.


Send Inquiry

Product Description

Foshan Fujiyuan Electronic Technology Co., Ltd's brand ZIHO 24V 5000W industrial frequency inverter has the advantages of more advanced, more stable, more practical, multi-functional, fine workmanship, etc, with a variety of protection functions. Utility complementary, charge cut-off voltage adjustable, support lead-acid, lithium iron, lithium ternary and other battery types. Intelligent multiple parameter values can be set according to the user demand range. Applicable to family backup power, outdoor commercial ground stand, industrial setup power, marine solar power generation system, medical equipment power supply system, etc.. The company has its own product patents and R&D team. With advanced production equipment, the company is a specialized and personalized new energy company integrating R&D, production, design and sales. Our products are sold to most markets in Southeast Asia in large quantities. We support ODM and OEM, and our products are sold to most markets in Southeast Asia. We are looking forward to being your long-term partner in China. Off-grid power supply is the brand name of Fujiyuan ZIHO.

Machine Model FSY-PDD50202
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Watt 5000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Input Protection Over current Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 28.4V, float charging 27.6V, constant current and constant voltage 29V
Charging Current 0-60A
Resistive loads Below 5000W
Inductive loads Below 2000W
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Product size L*W*H cm 67*22*19
Package size L*W*H cm 75*27*27
Inverter weight KG 27

Product Features and Applications of 24V 5000W Industrial Frequency Inverter

24V 5000W industrial frequency inverter, with short circuit, overload, overvoltage/undervoltage, over temperature and other protection functions. Digital display screen, real-time display of charging current and other parameters. With UPS function, automatic conversion without human operation. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 5000W resistive load, 2000W motor, etc..

Product Details for 24V 5000W Industrial Frequency Inverter

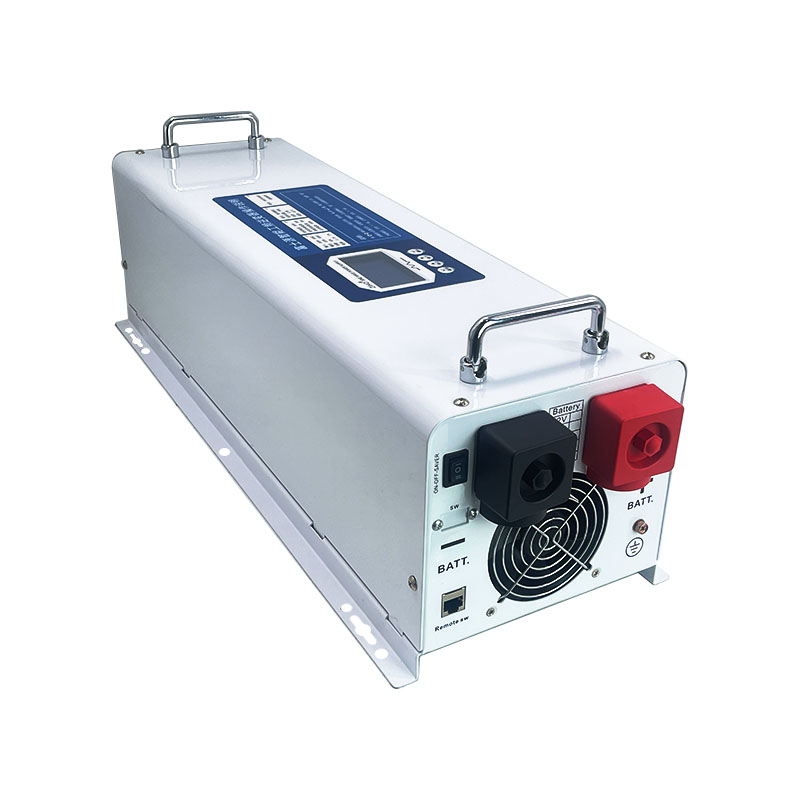

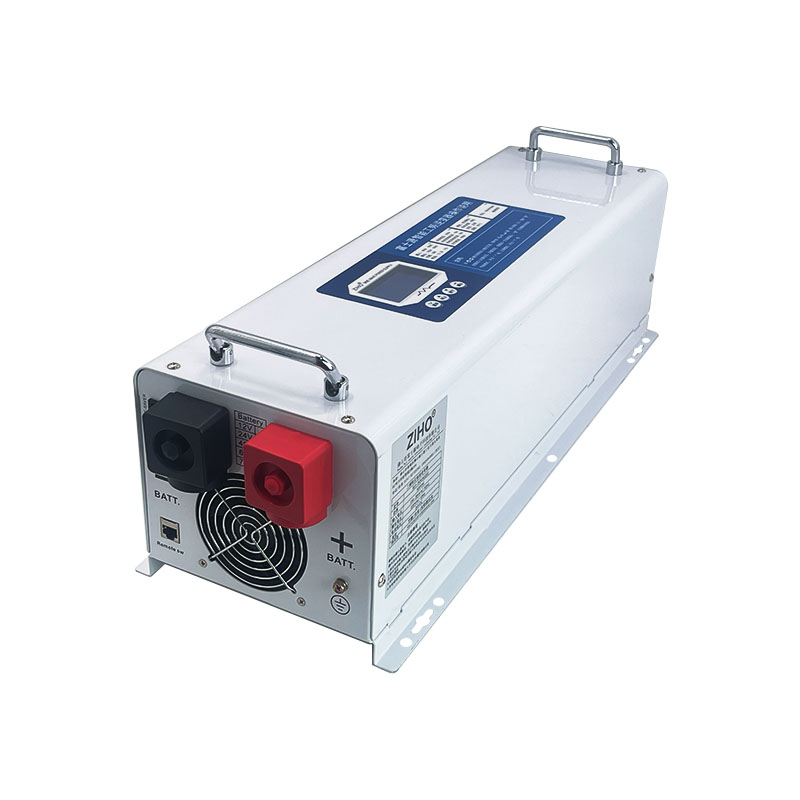

Product Detail Show

Easy to understand and operate at a glance

Digital display large screen, display the parameter data, and the user can set the inverter parameters, and at the same time, press "Return" and "Confirm" to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching, and so on.
