Home > Products > Off-grid Inverters > Industrial Frequency Inverter > 48V 7000W Industrial Frequency Inverter

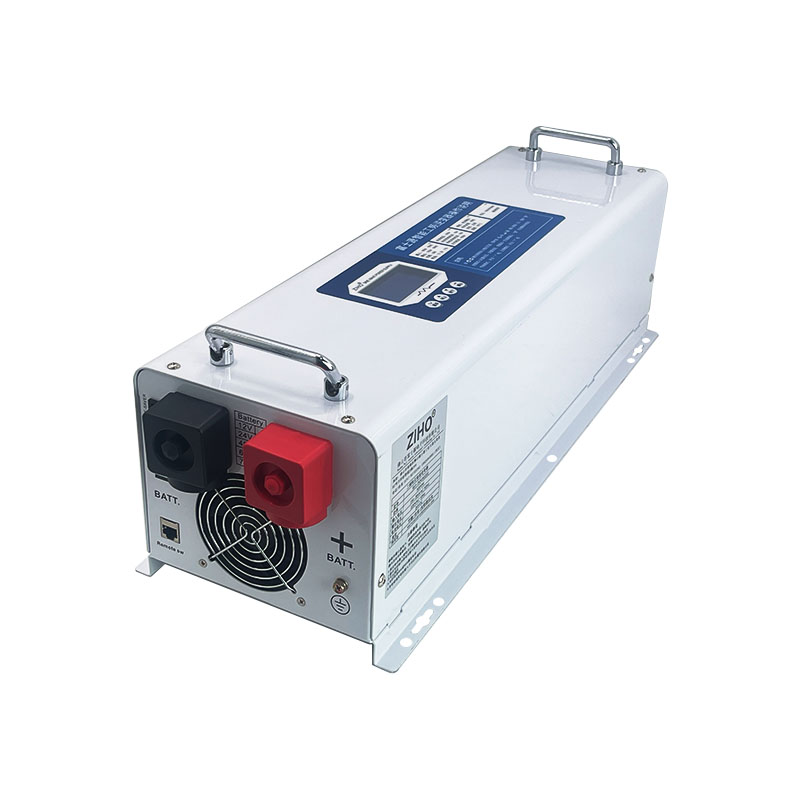

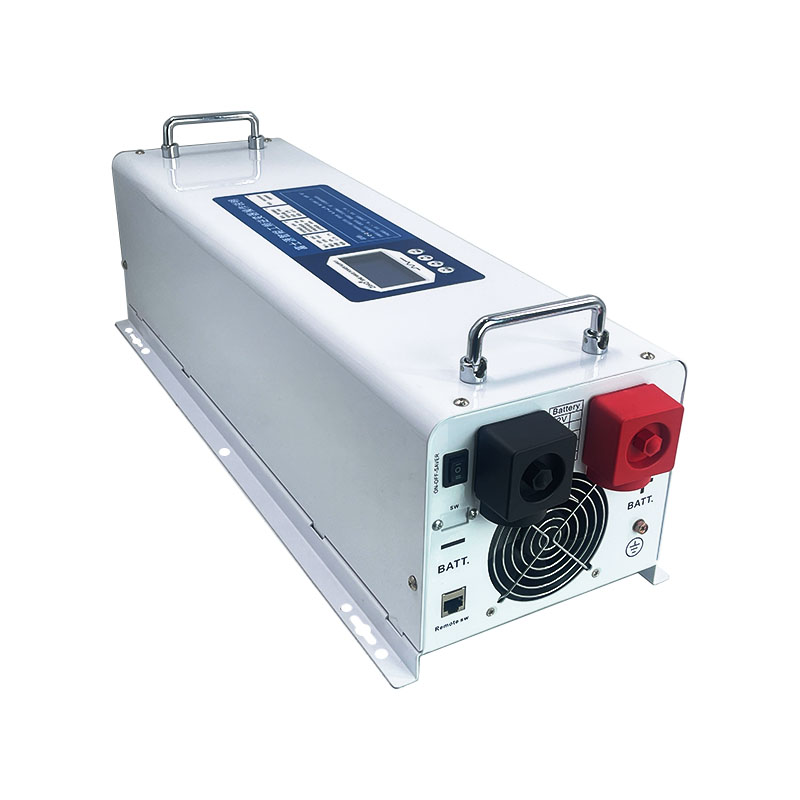

48V 7000W Industrial Frequency Inverter
  • 48V 7000W Industrial Frequency Inverter48V 7000W Industrial Frequency Inverter
  • 48V 7000W Industrial Frequency Inverter48V 7000W Industrial Frequency Inverter

48V 7000W Industrial Frequency Inverter

Foshan Fujiyuan Electronic Technology Co., Ltd's brand ZIHO 48V 7000W industrial frequency inverter is suitable for home power supply system, company/hospital uninterruptible power supply system, agricultural power supply system, industrial motor power supply system, RV/special vehicle power supply system and so on. We support ODM and OEM, and our products are sold to most markets in Southeast Asia. We look forward to being your long-term partner in China.

Send Inquiry

Product Description

The FSY-PDD70204/48V7000W inverter has lightning protection function, can be used continuously for a long time, and supports most electrical appliances. Output voltage 170V-260V/85V-130V adjustable. 11 adjustable charging gears, can be charged by utility power, large digital display, real-time display of charging current. Supports multiple battery types and can be switched to multiple languages. Suitable for: car LED billboards, ice cream machines, coffee machines, welding machines, water pumps, cutting machines, CNC precision instruments, induction cookers, air conditioners, rice cookers, electric kettles, desk lamps, computers, stereos, kettles, microwave ovens, and other electrical appliances.

Machine Model FSY-PDD70204
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Watt 7000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Input Protection Interrupter
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 56.8V, float charging 55.2V, constant current and constant voltage 58V
Charging Current 0-50A
Resistive loads Below 7000W
Inductive loads Below 2500W
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Product size L*W*H cm 67*22*19
Package size L*W*H cm 75*27*27
Inverter weight KG 32

Product Features and Applications of 48V 7000W Industrial Frequency Inverter

48V 7000W industrial frequency inverter, with short circuit, overload, overvoltage/undervoltage, over-temperature and other protection functions. Digital display, real-time display of charging current and other parameters. With UPS function, automatic conversion, no need for manual operation. Can be used for: electric hammer, water pump, cutting machine, CNC/measuring precision instruments, electric kettle, rice cooker, refrigerator, computer, precision instruments, fish tank, 7000W resistive loads, 2500W motors and so on.

Product Details for 48V 7000W Industrial Frequency Inverter



Product Detail Show

Easy to understand and operate at a glance

Digital display large screen, display the parameter data, and the user can set the inverter parameters, and at the same time, press "Return" and "Confirm" to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching, and so on.

Hot Tags: 48V 7000W Industrial Frequency Inverter, China, Manufacturer, Supplier, Factory, Made in China, Customized, Wholesale
