Fujiyuan ZIHO® is a Chinese manufacturer that develops and produces solar inverters. The factory produces 24V 2000W-140A MPPT solar inverters with a built-in 140A-MPPT solar controller that supports a wide range of battery types. The recommended access voltage range is 39V-150 V. Our partners cover most of Southeast Asia. It is widely used in home photovoltaic storage power generation system, marine solar power generation system and so on. For advanced and high quality power supply, please pay attention to the brand of Fujiyuan ZIHO. We are looking forward to being your long-term partner in China.
24V 2000W-140A MPPT solar inverter has various protection functions such as short circuit, overload, overvoltage/undervoltage, overheat and so on. Supports solar panel access voltage up to 140A, recommended to control between 39V-150V, real-time display of charging current. Output 210V-240V/105V-120V adjustable, stable output voltage. Suitable for: computer, electric kettle, water heater, refrigerator, lighting and so on.
Machine Model | FSY-Smart20202-140A | |
Input | ||
Utility Volts | 220V | 110V |
Utility Range | 170-260VAC | 85-130VAC |
Frequency | 50/60HZ | |
Ootput | ||
Watt | 2000W | |
Volts | 220V±5% | 110v±5% |
Frequency | 50/60HZ | |
Waveform | Pure Sine Wave | |
Conversion Time (AC to DC) | <8ms | |
Conversion Time (DC to AC) | <8ms | |
Output Voltage Regulation | 210V-240V | 105V-120V |
Bypass Mode | Have | |
Energy Saving Mode | Have | |
Efficiency | ≥85% | |
Protect | ||
Input Protection | Overcurrent Protector | |
Output Protection | CPU Protect | |
Battery (sold separately) | ||
Battery Type | Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized | |
Charging Method | Three stage float charging/constant current and pressure | |
Utility Charge Voltage | Three-stage float charging: regular 28.4V, float charging 27.2V, constant current and constant voltage 29V | |
Charging Current | 0-40A | |
Photovoltaic | Specification of inverter control all-in-one machine only | |
Controllers | MPPT | |
Volts | 24V | |
Current | 140A | |
loadability | ||
Resistive loads | Below 2000W | |
Inductive loads | Below 750W | |
Alarm | ||
Low Pressure Alarm | Audible Alarm - 5 Seconds Beep | |
Overload Alarm | Audible Alarm - Continuous Beep | |
Fault Alarm | Audible Alarm - Continuous Beep | |
Setting | ||
Temp | 0-40℃ | |
Moisture | 0-90% Non-Condensing | |
Noise | <60dB | |
Sizes | ||
Product size L*W*H cm | 56*37*29 | |
Package size L*W*H cm | 58*39*31 | |
Inverter weight KG | 19.5 |
24V2000W-140A MPPT Solar Inverter Product Characteristics and Applications
24V2000W-140A MPPT solar inverter with multiple protection functions such as short circuit, overload, overvoltage/undervoltage and over temperature. Built-in MPPT solar controller, supports utility charging and solar panel access for power generation, real-time display of the size of the charging current, conversion speed in milliseconds, with UPS function, utility power complementary. Can take: electric kettle, rice cooker, refrigerator, computer, precision instruments, 2000W resistance load, 750W motor, etc.
Product Details for 24V2000W-140A MPPT Solar Inverter

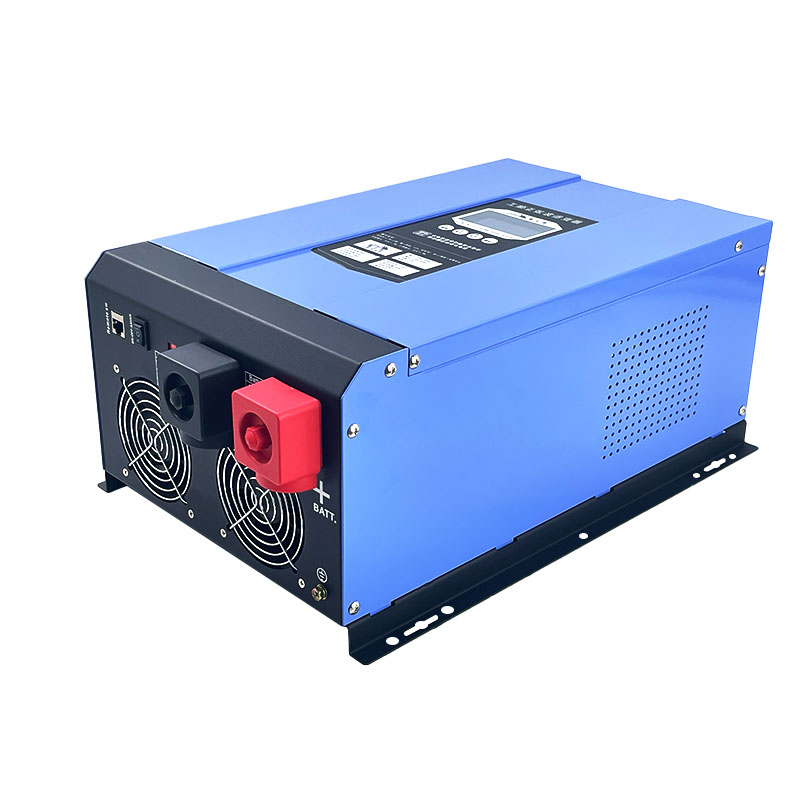

Front

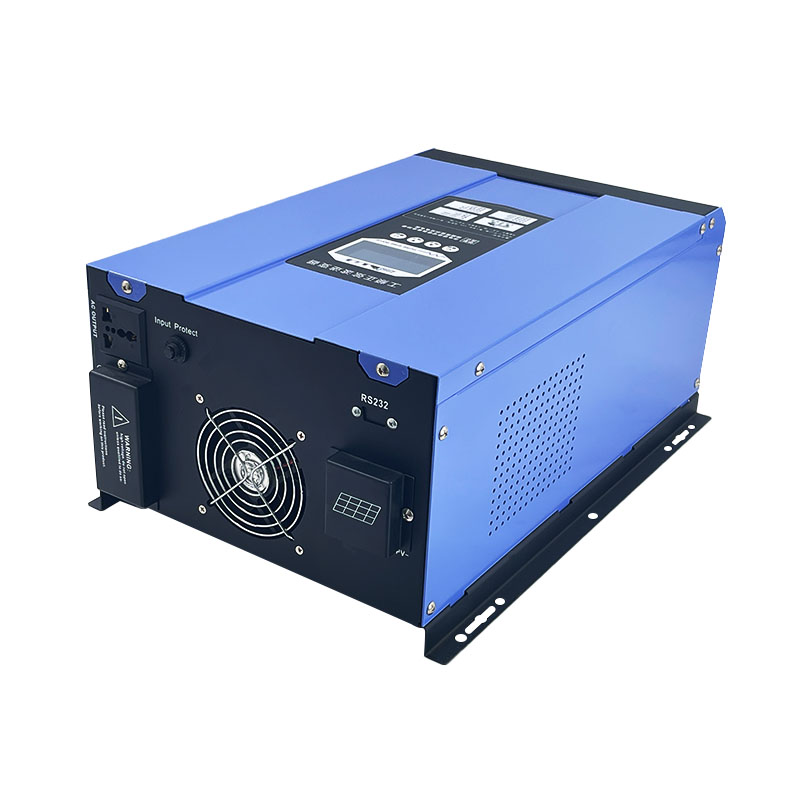

Backside
Product Detail Show
Easy to understand and operate at a glance
