12V 2000W Industrial Frequency Inverter
  • 12V 2000W Industrial Frequency Inverter12V 2000W Industrial Frequency Inverter
  • 12V 2000W Industrial Frequency Inverter12V 2000W Industrial Frequency Inverter

12V 2000W Industrial Frequency Inverter

The ZIHO high quality 12V 2000W Industrial Frequency Inverter boasts superior advancement, stability, and functionality, alongside meticulous craftsmanship. Its versatility allows seamless switching between multiple modes, making it ideal for various applications such as home backup power, RV power systems, and more.

Model:FSY-PDD20201

Send Inquiry

Product Description

The FSY-PDD20201 12V 2000W Industrial Frequency Inverter stands out for its advanced technology, stability, and versatility, complemented by impeccable craftsmanship. Designed for extended usage, it seamlessly powers a wide range of electrical equipment with its sine wave output, delivering stability comparable to utility power. With the ability to charge batteries and switch between multiple modes, it supports both 50Hz and 60Hz frequencies. Ideal for powering desktop computers, fans, lighting, air conditioners, refrigerators, and various other electrical appliances.


Machine Model FSY-PDD20201
Input
Utility Volts 220V 110V
Utility Range 170-260VAC 85-130VAC
Frequency 50/60HZ
Ootput
Watt 2000W
Volts 220V±5% 110v±5%
Frequency 50/60HZ
Waveform Pure Sine Wave
Conversion Time (AC to DC) <8ms
Conversion Time (DC to AC) <8ms
Output Voltage Regulation 210V-240V 105V-120V
Bypass Mode Have
Energy Saving Mode Have
Efficiency ≥85%
Protect
Input Protection Over current Protector
Output Protection CPU Protect
Battery (sold separately)
Battery Type Lead-acid/gel/lithium iron phosphate/lithium ternary battery/customized
Charging Method Three stage float charging/constant current and pressure
Utility Charge Voltage Three-stage float charging: regular 14.2V, float charging 13.8V, constant current and constant voltage 14.5V
Charging Current 0-50A
loadability
Resistive loads Below 2000W
Inductive loads Below 750W
Alarm
Low Pressure Alarm Audible Alarm - 5 Seconds Beep
Overload Alarm Audible Alarm - Continuous Beep
Fault Alarm Audible Alarm - Continuous Beep
Setting
Temp 0-40℃
Moisture 0-90% Non-Condensing
Noise <60dB
Sizes
Product size L*W*H cm 49*22*19
Package size L*W*H cm 53*27*27
Inverter weight KG 14


Product Features and Applications of 12V 2000W Industrial Frequency Inverter

12V 2000W industrial frequency inverter, with short circuit, overload, overvoltage/undervoltage, over-temperature and other protection functions. Digital display, real-time display of charging current and other parameters. With UPS function, automatic conversion, no need for manual operation. Support utility/generator input. Can be used with: electric kettle, rice cooker, refrigerator, computer, precision instrument, 2000W resistive load, 750W motor, etc.


Product Details for 12V 2000W Industrial Frequency Inverter

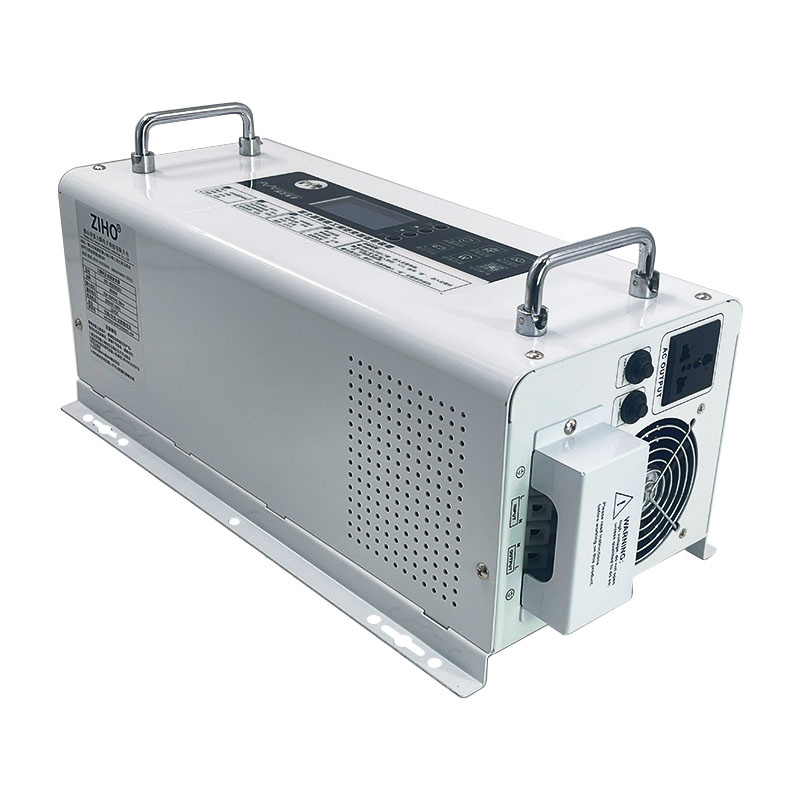

Front

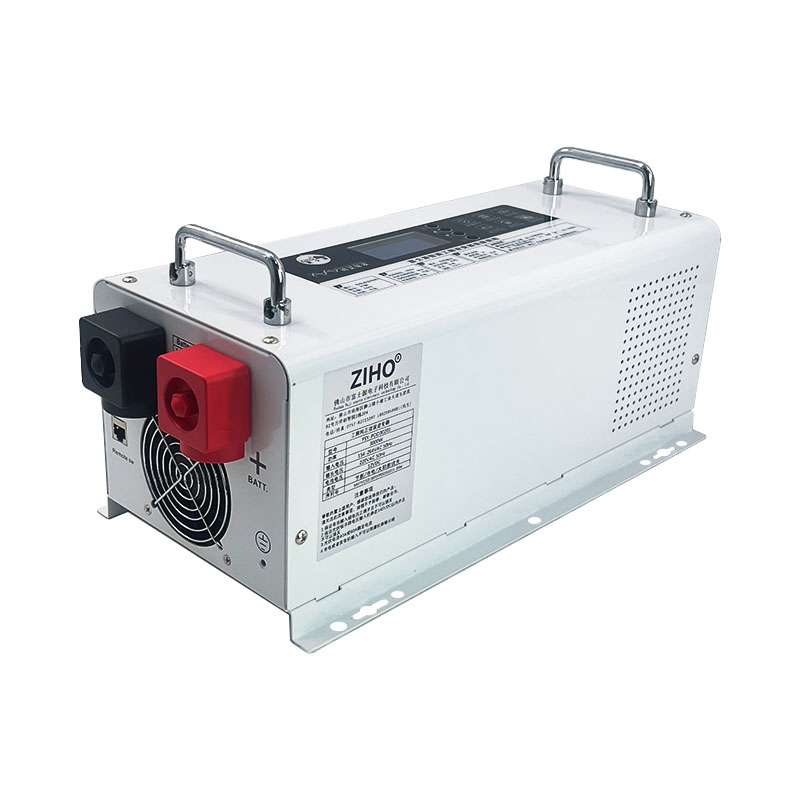

Backside


Product Detail Show

Easy to understand and operate at a glance

Digital display large screen, display the parameter data, and the user can set the inverter parameters, and at the same time, press "Return" and "Confirm" to enter the setting page, such as setting the battery type, charging current, working mode, input/output, alarm switch, utility charging cut-off voltage, backlight switch, Chinese/English switching, and so on.
